Click to enlarge

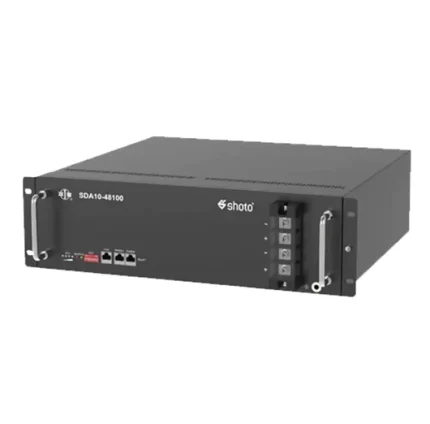

Shoto: Battery Lithium Ion 5.1Kw 16Cell
Shoto: Battery Lithium Ion 5.1Kw 16Cell R19,990.00
Back to products
Dyness: Battery Lithium Ion B3 3.6Kwh 48V 75Ah
Dyness: Battery Lithium Ion B3 3.6Kwh 48V 75Ah R15,990.00

Solar MD: Battery Lithium Ion 14.3kWh

R63,990.00

Description

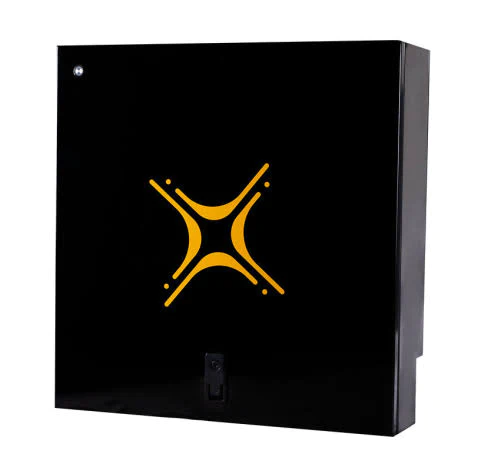

SOLAR MD  SS4143 Advanced Lithium-Ion Battery

The SS4143 relies on a lithium Iron-Phosphate battery for streamlined energy storage. You can use 1 to 6 batteries on the wall during the setup. The Solar MD 14.3kWh features different storage capacities according to user requirements. We can increase capacity through the parallel connection of the batteries. This will enable you to use from14.3kWh to 85.8kWh setup.

SS4143 SYSTEM FEATURES
  • It’s a flexible solution for both small configurations and mid-sized configurations
  • It supports both parallel connections and CAN communications
  • A modular design
  • It is very easy to install
  • A universal Wall-mounted system
  • Excellent safety
  • High-temperature performance
  • Long life cycle
  • High energy density
  • Stable discharge platform
  • High charge & discharge rate
  • Highly efficient
SS4143 APPLICATIONS

•  Residential PV Installations for household energy demands
•  Residential and commercial UPS systems
•  Used with the addition of an external battery inverter
•  OFF-GRID energy system
•  We use the standard SS4074 battery all over the South African market for energy storage applications
•  We produce the battery with the world-leading LiFeP04 technology

SS4143 MULTICOLORED MULTIPURPOSE BUTTON

•  The new Solar MD Multipurpose button has an extended functionality in combination with the BMS-EX 1.03. They can use the Multipurpose Button to execute 6 pre-defined functions and a shutdown instruction. It’s combined with the 6-level Indicator LEDs on BMS-EM v10.01. The user can choose between each function by holding the button until the LEDs count to match the number of the function. By releasing the button while moving through the functions, LEDs will start blinking and wait for the user to press the button again within 3 seconds
•  Advanced indication functionality allows the user to choose between 5 different states. It also allows mixed combinations when a combination of multiple batteries with BMS-EM v10.01 are used. The user can change the preferred stage by logging into his mypower24 Energy Portal and go to the battery settings.
•  When this state has been selected, the button, in effect, will show a static illumination in a colour based on the state of charge. From RED at 0% SoC (State of Charge) to GREEN at 100% state of charge.

Compare
Add to wishlist
SKU: SMDSS4143 Category:
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Solar MD: Battery Lithium Ion 14.3kWh”

Your email address will not be published. Required fields are marked *

Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

Compare

Dyness: Battery Lithium Ion Power Box 10.2Kwh 51V 200Ah

R44,990.00

Description

  • Dyness 10.24kWh 200Ah LiFePo4 Lithium Ion Battery – Powerbox Pro
  • Model Powerbox Pro
  • LiFePo4 Chemistry Battery with Safe Performance & Longer Cycle Life.
  • Offers Various Capacity Options to Meet Different Requirements.
  • App Monitoring.
  • Plug & Play Installation.
  • Flexible Expansion.
  • Battery Type: LiFePo4
  • Nominal Battery Energy: 10.24kWh
  • Nominal Capacity: 200Ah
  • Nominal Voltage: 51.2V
  • Working Voltage: 44.8-57.6V
  • Recommended Output Power: 5.12kW
  • Maximum Output Power: 7.68kW
  • Recommended Charge & Discharge Current: 100A
  • Maximum Charge & Discharge Current: 150A
  • IP65 – high protection level.
  • Charge Temperature: 0°C to 55°C
  • Discharge Temperature: -20°C to 55°C
  • Cycle Life: 6000 Cycles
  • Expansion: up to 5 units in parallel.
  • Communication: CAN/RS485/RS232
  • Weight: 103Kg
  • Dimensions (W x D x H): 555 x 210 x 928 mm
  • Refer To Brochure For Detailed Product Specifications.
  • 10 Year Limited Product Warranty.
  • Free Delivery Nationwide – South Africa
Add to wishlist
Add to cart
Quick view
Compare

Dyness: Battery Lithium Ion B3 3.6Kwh 48V 75Ah

R15,990.00

Description

Dyness B3 3.6kwh 48V 75AH Lithium Ion Battery is equipped with intelligent BMS for each battery pack to manage modules effectively. BMS system protects against damage from over- and under-charging, built-in surge protection, abnormal current protection; and will manage the modules and battery packs effectively. This enhances the cycle life of the battery. General Data Battery Type: LiFePO4 Nominal Battery Energy: 3.6Kwh Nominal Capacity: 75Ah Nominal Voltage: 48V Maximum Continuous Discharge Current: 50A Maximum Continuous Charge Current: 50A Charging Cut-Off Voltage: 54V Discharging End-Off Voltage: 40.5V Recommended C Rate: 0.5C Charging Temp Range: 0°C to 50°C Discharging Temp Range: -20°C to 50°C Protection Level: IP20 Calendar Life: 6000 Cycles Communication: CANBUS / RS485 Configuration: Up to 144KWH Total Energy, 40 Modules Parallel Maximum
Add to wishlist
Add to cart
Quick view
Compare

Volta – Battery Lithium Ion 14.3kW 51.2V 200Ah – Stage 4

R52,000.00

Description

Volta Lithium Ion Battery are relatively lightweight and can be recharged quickly. Comes in both a wall mount and floor stand configuration. Volta Stage 4 Battery is an ideal lithium-ion battery for use in a variety of solar solutions. Long cycle life Using high-quality lithium iron phosphate batteries, the cycle life is more than 6000 times at 80%DOD, and can be used for 10-15 years High quality prismatic lithium iron phosphate battery Higher capacity, higher current, longer life Low internal resistance and high current Low internal resistance of the battery, excellent continuous high current discharge performance Intelligent BMS battery protection Built-in intelligent BMS (battery management system), effectively avoiding overcharge, overdischarge, overcurrent, short-circuit, balance and other problems Communicated with multiple brands inverter same time battery BMS supports simultaneous communication and docking with multiple brands inverter Good safety performance Extreme safety test, no fire, no explosion, no leakage
Add to wishlist
Add to cart
Quick view
Compare

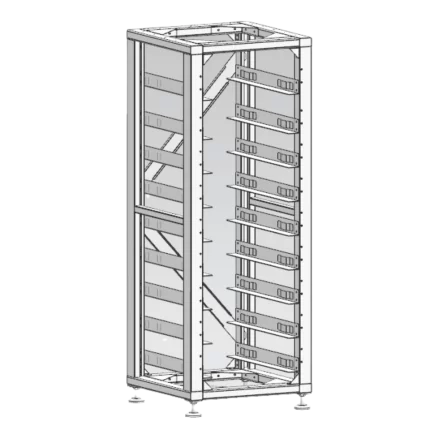

Deye – Rack for 12 x Battery High Voltage – BOS-G

R9,490.00

Description

General Data • Standard 19 Inch Rack (3U Bay Size) • Fits 12 x HV Batteries & 1 x HV Battery Cluster Control
Add to wishlist
Add to cart
Quick view
Compare

Dyness: Battery Lithium Ion 5.12KWH 51.2V 100Ah

R19,990.00

Description

  • Dyness 5.12kWh 100Ah LiFePo4 Lithium Ion Battery – BX51100
  • Model BX51100
  • Module Type: LiFePo4
  • Battery Module Capacity: 5.12kWh
  • Battery Module Voltage: 51.2Vdc
  • Battery Module Capacity: 100Ah
  • Battery Cell Capacity: 320Wh
  • Battery Cell Voltage: 3.2Vdc
  • Battery Cell Capacity: 100Ah
  • Recommended Battery Module Charge & Discharge Current: 50A
  • Maximum Battery Module Charge & Discharge Current: 75A
  • Battery Module Cell Quantity: 16pcs
  • IP20
  • Charge Condition: 0°C to 55°C
  • Discharge Condition: -20°C to 55°C
  • Storage Temperature: -10°C to 35°C
  • Configuration: max 40 modules parallel
  • Communication: CAN/RS485
  • Weight: 50Kg
  • Dimensions (W x D xH): 558 x 545 x 190 mm
  • Refer To Brochure For Detailed Product Specifications.
  • 10 Year Limited Product Warranty.
  • Free Delivery Nationwide – South Africa
Add to wishlist
Add to cart
Quick view
Compare

Volta – Battery Lithium Ion 7.6kW 51.2V 150Ah – Stage 2

R32,500.00

Description

General Data • Battery Type: Lithium-Ion • Product Model: VOLTA STAGE 2 • Nominal Energy: 7.68KWH • Nominal Voltage: 51.2VDC • Nominal Capacity: 150AH • Cell Type: LFP • 1C/1C Continual Charge & Discharge • Standard Charge Voltage: 56VDC • Maximum Discharge Current: 150A • Discharge Cut-Off Voltage: 44.8VDC • Maximum Parallel Units: 8 • Design Life: 6000 Cycles @ 80% DOD @ 25°C • Installation Type: Wall Mount & Floor Stand Environment Limit • Ingress Protection: IP20 • Charge Temperature Range: 0°C to +65°C • Discharge Temperature Range: -20°C to +65°C • Communication: RS485, RS232, CAN • Safety Rating: MSDS / UN38.3
Add to wishlist
Add to cart
Quick view
Compare

Pylontech – Battery Lithium Ion 4.8KWH 48V – UP5000

R20,990.00

Description

The PYLON Battery UP5000 is a Lithium-Ion (Li-ion) battery with a capacity of 4.8 kWh and a voltage of 48V. It is designed to provide backup power for residential and small commercial applications, such as off-grid solar systems, energy storage systems, and uninterruptible power supply (UPS) systems. Li-ion batteries are known for their high energy density, low self-discharge rate, and long cycle life. They are also lightweight and compact, making them ideal for use in energy storage systems. The PYLON Battery UP5000 features a built-in battery management system (BMS) that monitors the battery’s temperature, voltage, and current to ensure safe and efficient operation. It also includes a communication interface that allows the battery to communicate with other devices and systems, such as solar inverters and energy management systems. Overall, the PYLON Battery UP5000 is a reliable and efficient energy storage solution that can help you reduce your energy costs and increase your energy independence
Add to wishlist
Add to cart
Quick view
Compare

Shoto: Battery Lithium Ion 5.1Kw 16Cell

R19,990.00

Description

• Model: 51.2-100 16Cell • Nominal Capacity (kWh): 5.12 • Rated capacity: 100AH • Operating voltage range: 42V to 57.6V • Boost Charge / Float Charge Voltage: 57.6V / 54V • Depth of Charge: 90% • Usable Capacity (kWh): 4.6 • Charge Voltage: 57.6V • Discharge Voltage: 48V • Nominal Voltage: 51.2V • Maximum Parallel Units: 16 • Communication Port: RS485 & CANBUS • Cycle Life: ≥5000 @ 25°C • Humidity: 5%-95% • Altitude: ≤ 4000m • Certificate: TUV(IEC 62619)/CE-EMC/UN38.3 • Installation Method: Rack Mount / Wall Mount • Terminal Stud: M8 Charge / Discharge Current • Max 100A (1C) • Recommended 50A (0.5C) Rated Operating Temperature • Charge -5°C to +45°C • Discharge -20°C to +50°C Recommended Operating Temperature • Charge +15°C to 35°C • Discharge +15°C to +35°C • Storage -20°C to +35°C Compatible Inverters • Growatt, Goodwe, Victron, Deye, Sofar, Luxpower & more
Add to wishlist
Add to cart
Quick view
