Click to enlarge
Shoto: Battery Lithium Ion 5.1Kw 16Cell
Shoto: Battery Lithium Ion 5.1Kw 16Cell R19,990.00
Back to products
Dyness: Battery Lithium Ion B3 3.6Kwh 48V 75Ah
Dyness: Battery Lithium Ion B3 3.6Kwh 48V 75Ah R15,990.00

Solar MD: Battery Lithium Ion 14.3kWh

R63,990.00

Description

SOLAR MD  SS4143 Advanced Lithium-Ion Battery

The SS4143 relies on a lithium Iron-Phosphate battery for streamlined energy storage. You can use 1 to 6 batteries on the wall during the setup. The Solar MD 14.3kWh features different storage capacities according to user requirements. We can increase capacity through the parallel connection of the batteries. This will enable you to use from14.3kWh to 85.8kWh setup.

SS4143 SYSTEM FEATURES
  • It’s a flexible solution for both small configurations and mid-sized configurations
  • It supports both parallel connections and CAN communications
  • A modular design
  • It is very easy to install
  • A universal Wall-mounted system
  • Excellent safety
  • High-temperature performance
  • Long life cycle
  • High energy density
  • Stable discharge platform
  • High charge & discharge rate
  • Highly efficient
SS4143 APPLICATIONS

•  Residential PV Installations for household energy demands
•  Residential and commercial UPS systems
•  Used with the addition of an external battery inverter
•  OFF-GRID energy system
•  We use the standard SS4074 battery all over the South African market for energy storage applications
•  We produce the battery with the world-leading LiFeP04 technology

SS4143 MULTICOLORED MULTIPURPOSE BUTTON

•  The new Solar MD Multipurpose button has an extended functionality in combination with the BMS-EX 1.03. They can use the Multipurpose Button to execute 6 pre-defined functions and a shutdown instruction. It’s combined with the 6-level Indicator LEDs on BMS-EM v10.01. The user can choose between each function by holding the button until the LEDs count to match the number of the function. By releasing the button while moving through the functions, LEDs will start blinking and wait for the user to press the button again within 3 seconds
•  Advanced indication functionality allows the user to choose between 5 different states. It also allows mixed combinations when a combination of multiple batteries with BMS-EM v10.01 are used. The user can change the preferred stage by logging into his mypower24 Energy Portal and go to the battery settings.
•  When this state has been selected, the button, in effect, will show a static illumination in a colour based on the state of charge. From RED at 0% SoC (State of Charge) to GREEN at 100% state of charge.

Compare
Add to wishlist
SKU: SMDSS4143 Category:
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Solar MD: Battery Lithium Ion 14.3kWh”

Your email address will not be published. Required fields are marked *

Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

Compare

Volta – Battery Lithium Ion 14.3kW 51.2V 200Ah – Stage 4

R52,000.00

Description

Volta Lithium Ion Battery are relatively lightweight and can be recharged quickly. Comes in both a wall mount and floor stand configuration. Volta Stage 4 Battery is an ideal lithium-ion battery for use in a variety of solar solutions. Long cycle life Using high-quality lithium iron phosphate batteries, the cycle life is more than 6000 times at 80%DOD, and can be used for 10-15 years High quality prismatic lithium iron phosphate battery Higher capacity, higher current, longer life Low internal resistance and high current Low internal resistance of the battery, excellent continuous high current discharge performance Intelligent BMS battery protection Built-in intelligent BMS (battery management system), effectively avoiding overcharge, overdischarge, overcurrent, short-circuit, balance and other problems Communicated with multiple brands inverter same time battery BMS supports simultaneous communication and docking with multiple brands inverter Good safety performance Extreme safety test, no fire, no explosion, no leakage
Add to wishlist
Add to cart
Quick view
Compare

Hina ESS – Battery Lithium Ion 5.1kW 51V 100Ah

R18,990.00

Description

Model: Hi-5 Cell Type: LFP Rated Power: 5.12KWH Rated Capacity: 100Ah Rated Voltage: 51.2V Charge Voltage: 56.5V Charge / Discharge Rating: 1C Maximum Charge / Discharge Current: 100A Discharge Peak Current: 105A - 15s / 120A - 0.5s Parallel Capacity: Up to 32 Units Mounting Type: Rack Mount Enclosure Protection: IP20 Communication: CAN / RS485 Humidity: 5% to 85% (Non-Condensing) Working Temperature: -20 C to 55 C Storage Temperature: -10 C to 35 C Certification: CE UN38.3 / IEC62619
Add to wishlist
Add to cart
Quick view
Compare

Dyness: Battery Lithium Ion Power Box 10.2Kwh 51V 200Ah

R44,990.00

Description

  • Dyness 10.24kWh 200Ah LiFePo4 Lithium Ion Battery – Powerbox Pro
  • Model Powerbox Pro
  • LiFePo4 Chemistry Battery with Safe Performance & Longer Cycle Life.
  • Offers Various Capacity Options to Meet Different Requirements.
  • App Monitoring.
  • Plug & Play Installation.
  • Flexible Expansion.
  • Battery Type: LiFePo4
  • Nominal Battery Energy: 10.24kWh
  • Nominal Capacity: 200Ah
  • Nominal Voltage: 51.2V
  • Working Voltage: 44.8-57.6V
  • Recommended Output Power: 5.12kW
  • Maximum Output Power: 7.68kW
  • Recommended Charge & Discharge Current: 100A
  • Maximum Charge & Discharge Current: 150A
  • IP65 – high protection level.
  • Charge Temperature: 0°C to 55°C
  • Discharge Temperature: -20°C to 55°C
  • Cycle Life: 6000 Cycles
  • Expansion: up to 5 units in parallel.
  • Communication: CAN/RS485/RS232
  • Weight: 103Kg
  • Dimensions (W x D x H): 555 x 210 x 928 mm
  • Refer To Brochure For Detailed Product Specifications.
  • 10 Year Limited Product Warranty.
  • Free Delivery Nationwide – South Africa
Add to wishlist
Add to cart
Quick view
Compare

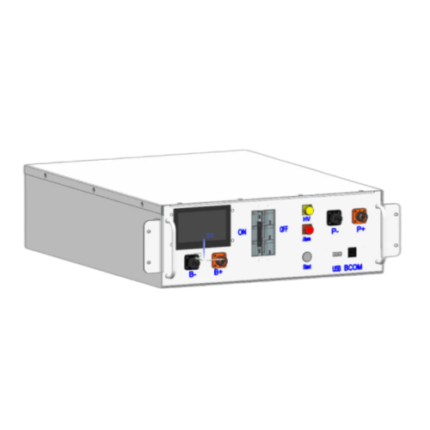

Deye – BMU – Battery High Voltage Control Box for BOS-G

R10,990.00

Description

Introducing the Deye High Voltage Battery Cluster Control Box, designed specifically for the BOS-G-HVB750V/100A-EU high voltage battery system. This control box serves as a central hub, providing intelligent management and enhanced safety features for your energy storage setup.

Key Features:

  1. Centralized Control: The Deye High Voltage Battery Cluster Control Box acts as a centralized unit, streamlining the control and management of your high voltage battery system.
  2. Seamless Integration: This control box is tailor-made for the BOS-G-HVB750V/100A-EU battery system, ensuring seamless compatibility and efficient communication.
  3. Advanced Monitoring: Gain comprehensive insights into your energy storage system's performance through real-time monitoring of parameters like voltage, current, state of charge, and more.
  4. Enhanced Safety: Equipped with advanced safety features, including overcurrent protection, short-circuit protection, and temperature monitoring, the control box ensures the safety and reliability of your energy system.
  5. User-Friendly Interface: The control box comes with a user-friendly interface that displays vital information about your battery system, making it easy to understand and manage.
  6. Expandability: The modular design of the control box allows for future expansion, accommodating the growth of your energy storage needs.
  7. Remote Accessibility: Access and control your energy system remotely via compatible devices, providing convenience and flexibility in system management.

Technical Specifications:

  • Model: BOS-G-HVB750V/100A-EU Control Box
  • Compatibility: Designed for use with the Deye BOS-G-HVB750V/100A-EU high voltage battery system
  • Communication Port: CAN2.0/RS485
  • Safety Features: Overcurrent protection, short-circuit protection, temperature monitoring
  • Operating Voltage: 120～750Vdc
  • Nominal Charge/Discharge Current: 100A
  • Max.Charge/Discharge Current: 125A
  • DC Input Rating: 12±2%V/4.15A
  • Operating Temperature Range: -20~55°C
  • Ingress Protection: IP20
  • Dimensions: 56.5 × 44 × 15 cm
  • Weight: 15.5 kg
  • Warranty: 10 years
Add to wishlist
Add to cart
Quick view
Compare

Pylontech – Battery Lithium Ion 3.5KWH 48V – US3000C

R17,990.00

Description

The PylonTech US3000C is a lithium-ion battery designed for home energy storage systems. It has a capacity of 3.5 kilowatt-hours (kWh) and a rated voltage of 48 volts (V). The battery uses lithium iron phosphate (LiFePO4) chemistry, which is known for its high safety, long cycle life, and good thermal stability. The US3000C is a modular battery, which means that it can be easily scaled up by adding additional units in parallel. The battery has a maximum charge/discharge power of 3.5 kilowatts (kW), which means that it can deliver or accept up to 3.5 kW of power at any given time. The US3000C also comes with a built-in Battery Management System (BMS), which helps to monitor the state of the battery and protect it from overcharging, over-discharging, and overheating. The BMS also helps to balance the charge between individual cells in the battery, which helps to improve the overall performance and lifespan of the battery. Overall, the PylonTech US3000C is a reliable and high-performance battery that can be a great choice for homeowners looking to add energy storage to their solar PV system or to create a backup power supply for their home.

Product Features

  • Modular design for ease of expansion
  • 95% Depth of Discharge (DoD)
  • Usable capacity 3374Wh
  • Parallel capability of up to 16 units
  • Intelligent BMS protecting battery cells
  • 6000 Cycles
  • RS485 and CAN compatible
  • Comes with 7-year standard warranty which is extendable to 10-years upon registration
  • Installation flexibility (Rack mount or Wall-mount)
Add to wishlist
Add to cart
Quick view
Compare

Deye – Rack for 12 x Battery High Voltage – BOS-G

R9,490.00

Description

General Data • Standard 19 Inch Rack (3U Bay Size) • Fits 12 x HV Batteries & 1 x HV Battery Cluster Control
Add to wishlist
Add to cart
Quick view
Compare

Volta – Battery Lithium Ion 5.1kW 51.2V 100Ah – Stage 1

R22,900.00

Description

Volta Lithium Ion Battery are relatively lightweight and can be recharged quickly. Comes in both a wall mount and floor stand configuration. The Volta Lithium-ion Battery can support 8 units in parallel to reach 40kwh. Volta Stage 1 Battery is an ideal lithium-ion battery for use in a variety of solar solutions. Volta 5.12kWh Lithium Battery Product advantages Long cycle life Using high-quality lithium iron phosphate batteries, the cycle life is more than 6000 times at 80%DOD, and can be used for 10-15 years High quality prismatic lithium iron phosphate battery Higher capacity, higher current, longer life Low internal resistance and high current Low internal resistance of the battery, excellent continuous high current discharge performance Intelligent BMS battery protection Built-in intelligent BMS (battery management system), effectively avoiding overcharge, overdischarge, overcurrent, short-circuit, balance and other problems Communicated with multiple brands inverter same time battery BMS supports simultaneous communication and docking with multiple brands inverter Good safety performance Extreme safety test, no fire, no explosion, no leakage
Add to wishlist
Add to cart
Quick view
Compare

Lemoen Battery Lithium Ion 2.56kWh 100Ah 25.6V

R9,990.00

Description

Model: Lemoen ECO 256~ 2.56KWH 25.6V 100Ah (Rack Mount) • Nominal Capacity (kWh): 2.56KW • Rated capacity: 100AH The Lemoen ECO 256~ 2.56KWH 25.6V 100Ah (Rack Mount) battery has a nominal voltage of 25.6 volts. This voltage is commonly used in energy storage systems and is compatible with many types of commercial and industrial inverters.

General Data

  • Nominal Energy – 2.5kwh
  • Nominal Voltage – 25.6V
  • Nominal Capacity – 100AH
  • Cell Type- LFP
  • Standard Charge Voltage – 29.2V
  •  Max Charge Current – 120A
  • Discharge Cut-Off Voltage – 20V
  • Max Discharge Current -120A
  • Parallel Function – Support Connection in Series and Parallel
  • Cycle Life – 3000 Cycles
  • Weight – 24.5kg
  • Warranty – 3 years
Add to wishlist
Add to cart
Quick view
